The RNG/RWG/RWBG series flow meter is a microprocessor based device, with HART compatible communications. The primary output of the meter is a 2 wire, 420 milliampere (mA) current which is proportional to the flow. With HART communications, users have the capability to remotely configure the meter. Typical operations, like re-scaling the.

Installation manual, Recordall® disc series meters, Safety information

1. The Recordall Turbo Series meters are the smart choice for larger facilities. The direct-coupled turbine uses an exclusive floating rotor design that reduces bearing friction and associated wear to provide greater accuracy and a longer service life. The Recordall Compound Series meters combine two metering technologies in one innovative package.
2. Badger Meter Recordall Series Manuals & User Guides. User Manuals, Guides and Specifications for your Badger Meter Recordall Series Measuring Instruments. Database contains 1 Badger Meter Recordall Series Manuals (available for free online viewing or downloading in PDF): Operation & user’s manual.
3. View & download of more than 216 Badger meter PDF user manuals, service manuals, operating guides. Measuring instruments user manuals, operating guides & specifications.

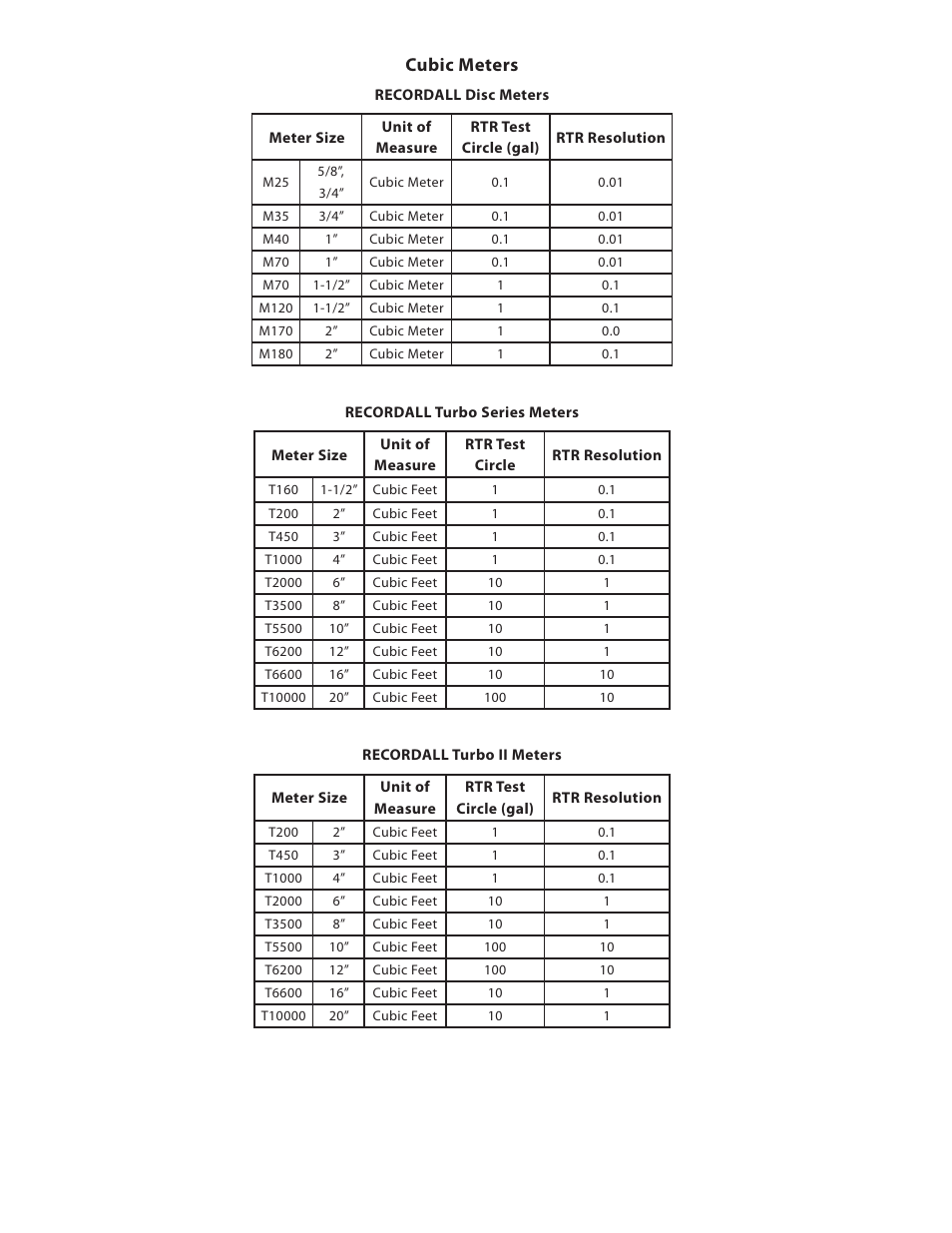

Recordall® Disc Series Meters

Cold Water Disc Meters, 5/8' to 2'

Installation Manual

RDM-UM-00059-EN-03 (May 2013)

SAFETY INFORMATION

The installation of the Recordall® Disc Series Meters must

comply with all applicable federal, state, and local rules,

regulations, and codes.
Failure to read and follow these instructions can lead to

misapplication or misuse of the Recordall® Disc Series Meters,

resulting in personal injury and damage to equipment.

PRODUCT UNPACKING AND

INSPECTION

Upon opening the shipping container, visually inspect the

product and applicable accessories for any physical damage

such as scratches, loose or broken parts, or any other sign of

damage that may have occurred during shipment.

NOTE:

N

If damage is found, request an inspection by

the carrier’s agent within 48 hours of delivery

and file a claim with the carrier. A claim for

equipment damage in transit is the sole

responsibility of the purchaser.

METER PRE-INSTALLATION

Take into account the following considerations before you

begin an installation:

• Inspect the piping around the meter setting for suitable

conditions. The service line, valves, connections and

meter must be watertight. Repair the piping system if

pipes are corroded or damaged.

• Set the meter in a horizontal position with flow in the up

direction. Registration should be upright and protected

from damage, freezing, and tampering.

• Position the meter so it is accessible for installation,

removal and reading.

• Verify that a suitable electrical grounding wire is properly

attached to the upstream and downstream pipe

connections of the meter. The grounding wire provides

an alternative path for any electrical current that may

exist across the opening in the line.

•

Close the curb (shut-off) valve to relieve water pressure

in the line before starting the cutting operation. Provide

a high-quality upstream shut-off valve with a low

pressure drop.

Badger Meter Recordall Turbo 450

•

When cutting into a new section of service pipe,

flush the pipe to clear chips, pipe dope or other

plumbing residue.

•

Badger Recordall Compound Meter

The installed meter must not be an obstacle or a hazard

to the customer or interfere with public safety.

•

DO NOT ATTEMPT TO USE ANY METER AS A LEVER OR

CROWBAR TO STRAIGHTEN A MISALIGNED METER

SETTING. THIS COULD DAMAGE THE METER.

•

DO NOT ATTEMPT TO SET A METER INTO AN OPENING

THAT IS TOO LONG BY FORCING THE PIPING INTO

PLACE WITH THE METER'S COUPLING NUTS. THIS WILL

CAUSE SERIOUS DAMAGE TO THE THREADED ENDS OF

THE METER AND HOUSING.

Badger Meter Recordall 6 User Manual Pdf

To avoid potential problems, correct any irregularities in pipe

spacing and misalignment before placing the meter into

its setting.

Recordall® Turbo Series Meters Models 160 (1-1/2'), 200 (2'), 450 (3'), 1000 (4'), 2000 (6'), 3500 (8'), 5500 (10'), & 6200 (12'); NSF/ANSI Standards 61 and 372 Certified DESCRIPTION Recordall Turbo Series meters meet or exceed the most recent revision of AWWA Standard C701 Class II Standards and are available in a lead-free bronze alloy for sizes 1-1/2' through 10' and cast iron for 12' meters. Turbo Series meters comply with the lead-free provisions of the Safe Drinking Water Act. Sizes 1-1/2' through 10' meters are also certified to NSF/ANSI Standards 61 and 372 (Trade Designation: Turbo Series LL-NS) and carry the NSF-61 mark on the housing. All components of the lead-free alloy meter (housing, measuring element, seals and so on) comprise the certified system. Models 160 through 6200 are designed for 1-1/2' through 12' applications. These meters feature: • Direct coupled turbine based on an exclusive “floating rotor” design that reduces bearing friction—and associated wear and tear. Low pressure loss for improved system efficiency. Exceptional registration accuracy across low flow rate, normal operating flow rate and maximum continuous operation flow. Permanently sealed, tamper-resistant register or encoder. Integral strainer option for sizes 1-1/2' through 4' help protect your system from damaging debris and related downtime. Meters and encoders are compatible with Badger Meter AMR/AMI meter reading systems and other approved reading technologies. Applications: Recordall Turbo Series meters are designed for cold water, commercial and industrial applications where flows are consistent medium to high flows. Applications include hotels, apartment buildings, irrigations centers and manufacturing and processing plants. Turbo Series meters help reduce day-today maintenance costs while delivering accurate and efficient performance. Operation & Performance: Direct magnetic drive is achieved when the magnet carrier is driven by a gear train coupled to the rotor. The gear train consists of two sets of gears connected by a vertical transmission shaft. One gear set is at the magnet carrier, the other is a worm gear set at the rotor shaft. When water flows into the Turbo Series meter measuring element, it contacts the multi-vaned rotor. The resulting rotor rotation is then transmitted by magnetic coupling to a sealed register or encoder. The direct magnetic drive is built to provides a reliable meter-to-registration coupling. Tamper-Proof Features: Unauthorized removal of the register or encoder is inhibited by the option of a tamper detection seal wire screw, TORX® tamper-resistant seal screw or the proprietary tamper-resistant keyed seal screw. Each can be installed at the meter site or at the factory. Construction: The Recordall Turbo Series meter is constructed in compliance with ANSI and AWWA C701 standards. It consists of the following basic components: meter housing, interchangeable, unitized measuring element and permanently sealed direct reading registers or encoders. The measuring element consists of the transmission coupling, rotor, inlet and outlet straightening vanes with nose cones, and calibration ring assembly. The unique inlet and outlet straightening vanes minimize swirl from piping arrangements upstream as well as downstream. A strainer is recommended to help ensure optimal flow conditioning and protection for the measuring element. An integral strainer is available as an option for 1-1/2' through 4' meter sizes. The stainless steel strainer is built into the inlet end and includes a removable cover plate to permit easy access for routine cleaning. External strainers are available in sizes 2' through 12'. To simplify maintenance, the registers or encoders and measuring elements can be removed without removing the meter housing. Interchangeability of certain parts between meters also minimizes spare parts inventory investment. Meter Installation: The meter is designed for installations where flow is in one direction only. Companion flanges for installation of meters on various pipe types and sizes are available in cast iron or NL bronze as an option. See the Recordall Turbo Series Meters User Manual for specific instructions. Product Data Sheet
